CURRENT TRANSDUCERS

All current transducer components are for high precision AC/DC current analysis. Older IT-transducers are analogue compensated, the new CT- and IN-sensors digital compensated. The digital compensation results in a very high DC-accuracy combined with a very high frequency range and low phase shift.

Digitally Compensated CT transducers for highest AC- and DC-Accuracy

CT 100

Range 100 Arms
Ratio 500 : 1

DATASHEET

CT 100 DC accuracy test between 1 mA and 30 A.
Upper instrument: CT 100 current output, scaling 500 : 1
Lower instrument: Direct input terminal 30 A

CT 100 AC accuracy test up to 100 A and 100 kHz with four primary turns.
I6: Direct reference current input terminal with coaxial shunt.
I1: Transducer output current, scaling 500 : 1.
Dev. I: Amplitude deviation in %.
Dev. Phi: Phase deviation in minutes.

CT 200

Range 200 Arms
Ratio 1000 : 1

DATASHEET

CT 200 DC accuracy test between 1 mA and 30 A.
Upper instrument: CT 200 current output, scaling 1000 : 1
Lower instrument: Direct input terminal 30 A

CT 200 AC accuracy test up to 100 A and 100 kHz with four primary turns.
I6: Direct reference current input terminal with coaxial shunt.
I1: Transducer output current, scaling 1000 : 1.
Dev. I: Amplitude deviation in %.
Dev. Phi: Phase deviation in minutes.

CT 400

Range 400 Arms
Ratio 1500 : 1

DATASHEET

CT 400 DC accuracy test between 1 mA and 30 A.
Upper instrument: CT 400 current output, scaling 1500 : 1
Lower instrument: Direct input terminal 30 A

CT 400 AC accuracy test up to 100 A and 100 kHz with four primary turns.
I6: Direct reference current input terminal with coaxial shunt.
I1: Transducer output current, scaling 1500 : 1.
Dev. I: Amplitude deviation in %.
Dev. Phi: Phase deviation in minutes.

CT 500

Range 500 Arms
Ratio 750 : 1

DATASHEET

CT 500 DC accuracy test between 100 mA and 30 A.
Upper instrument: CT 500 current output, scaling 750 : 1
Lower instrument: Direct input terminal 30 A

CT 500 AC accuracy test up to 100 A and 100 kHz with four primary turns.
I6: Direct reference current input terminal with coaxial shunt.
I1: Transducer output current, scaling 750 : 1.
Dev. I: Amplitude deviation in %.
Dev. Phi: Phase deviation in minutes.

CT 1000

Range 1000 Arms
Ratio 1500 : 1

DATASHEET

CT 1000 DC accuracy test between 1 A and 30 A.
Upper instrument: CT 1000 current output, scaling 1500 : 1
Lower instrument: Direct input terminal 30 A

CT 1000 AC accuracy test up to 100 A and 100 kHz with four primary turns.
I6: Direct reference current input terminal with coaxial shunt.
I1: Transducer output current, scaling 1500 : 1.
Dev. I: Amplitude deviation in %.
Dev. Phi: Phase deviation in minutes.

CT 2000

Range 200 Arms
Ratio 200 : 1

DATASHEET

CT 2000 DC accuracy test between 1 A and 30 A.
Upper instrument: CT 2000 current output, scaling 2000 : 1
Lower instrument: Direct input terminal 30 A

CT 2000 AC accuracy test up to 100 A and 35 kHz with four primary turns.
I6: Direct reference current input terminal with coaxial shunt.
I1: Transducer output current, scaling 2000 : 1.
Dev. I: Amplitude deviation in %.
Dev. Phi: Phase deviation in minutes.

Digitally Compensated IN transducers

IN 1200-S

Range 1200 Arms
Ratio 1500 : 1

DATASHEET

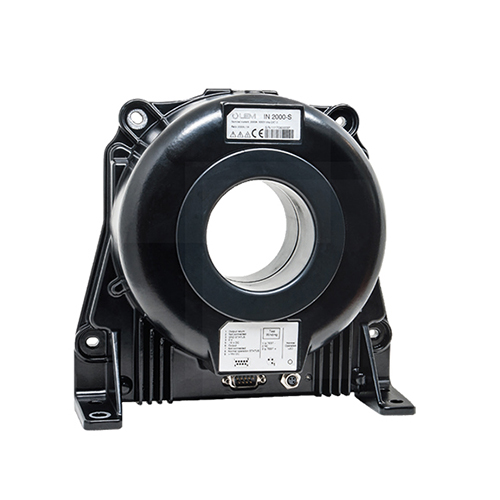

IN 2000-SB

Range 2000 ADC
Ratio 5 mV/A

DATASHEET

IN 2000-SB/SP1

Range 2000 Arms
Ratio 2.5 mV/A

DATASHEET

Analogue Compensated IT- and ITN-transducers

ITN 12-P

Range 12.5 ADC
Ratio 250 : 1

DATASHEET

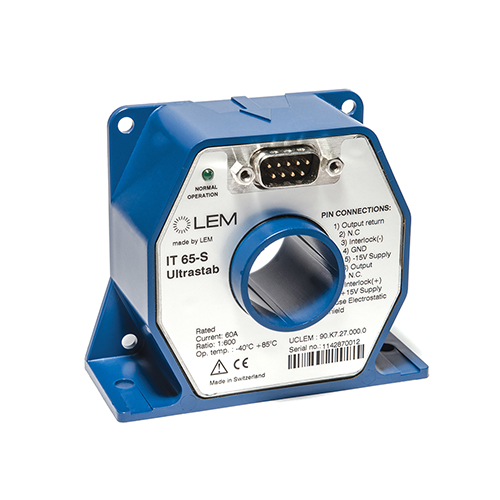

IT 60-S

Range 60 ADC
Ratio 600 : 1

DATASHEET

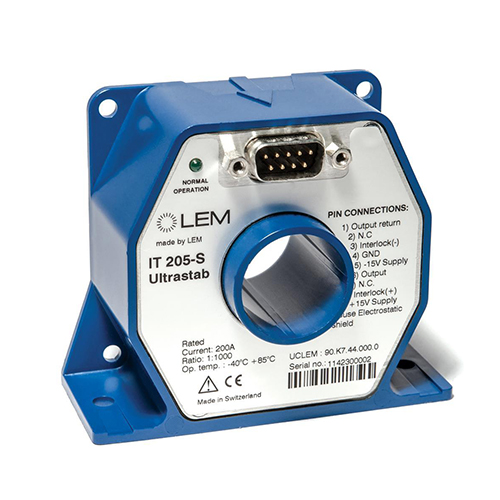

IT 200-S

Range 200 ADC
Ratio 1000 : 1

DATASHEET

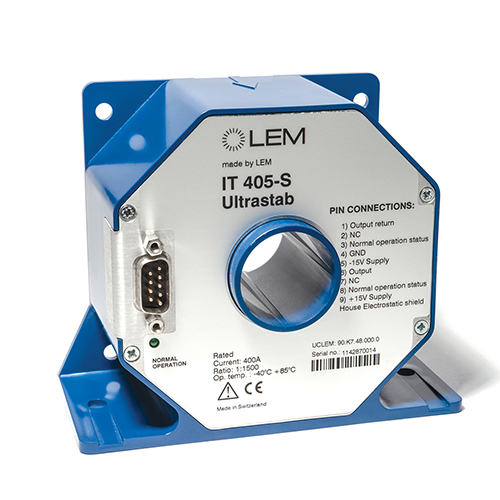

IT 400-S

Range 400 ADC
Ratio 2000 : 1

DATASHEET

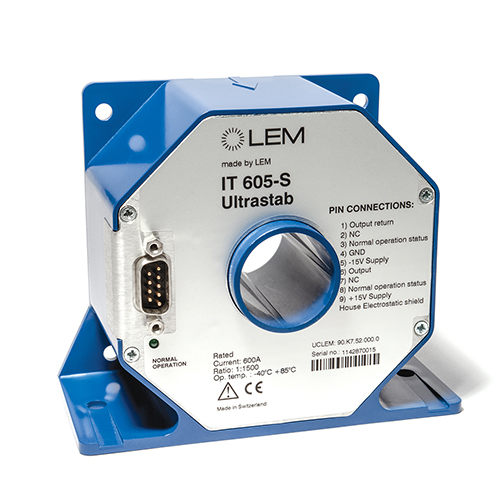

ITN 600-S

Range 600 ADC
Ratio 1500 : 1

DATASHEET

IT 700-S

Range 700 ADC
Ratio 1750 : 1

DATASHEET

IT 700-SB

Range 700 ADC
Ratio 14.29 mV/A

DATASHEET

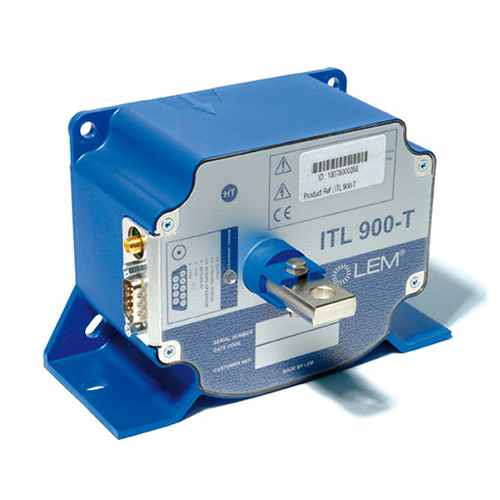

ITN 900-S

Range 900 ADC
Ratio 1500 : 1

DATASHEET

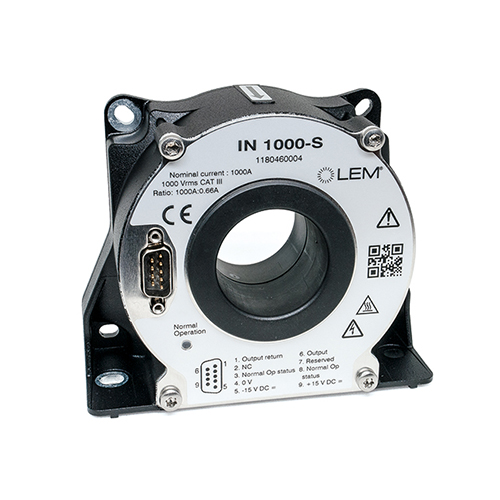

ITN 1000-S

Range 1000 ADC
Ratio 1500 : 1

DATASHEET

IT 1000-S/SP1

Range 1000 ADC
Ratio 1000 : 1

DATASHEET

CTS 5000

Range 5000 Arms
Ratio 2500 : 1

DATASHEET

DC accuracy test of CTS 5000 against high precision CT 1000 between 10 A and CT 1000 full scale 1000 A.
Upper instrument: CT 1000 current output, scaling 1500 : 1.
Lower instrument: CTS 5000 current output, scaling 2500 : 1.

AC power accuracy test of CTS 5000 against high precision CT 1000 between 10 A and 1000 A at 50 Hz and power factors between 0.05 and 1.
I1: CT 1000 current output, scaling 1500 : 1.
I2: CTS 5000 current output, scaling 2500 : 1.
